Products > Plywood Machinery > veneer clipper / veneer stacker > Veneer auto stacker

Product name : Veneer auto stacker

Product No. : 20181217145614

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

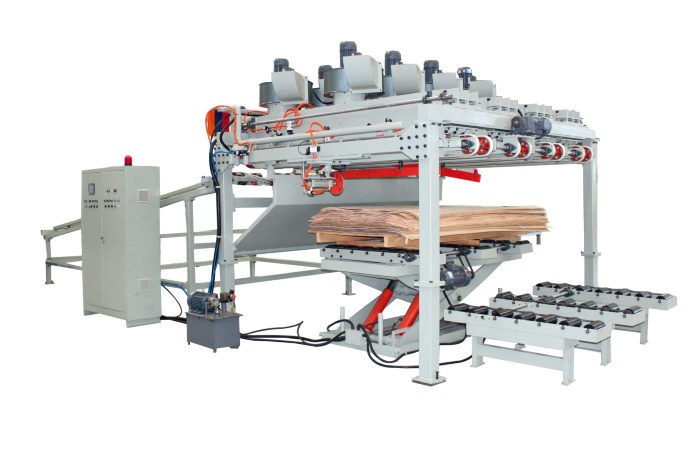

Veneer auto stacker

Feature：

The veneer clipper cut the length veneer to small veneer. Small veneer need to stack. The people could not stack the small veneer from high speed conveyor. So you must use this automatic veneer stacker.

The veneer stacker finish all process by mechanical, hydraulic and electronic program.

Parameter:

Model	BDD1126/4-1	BDD1120/3-1	BDD1113/8-1
Stacking size	8’x4’	6’x3’	4’x8’
Max. Working width	2600mm	2000mm	1350mm
Min. Working width	2200mm	1500mm	800mm
Veneer thickness	1.0-2.2mm	1.0-2.2mm	1.0-2.2mm
Max. speed	90m/min	90m/min	90m/min
Max. Stack heigh	1000mm	1000mm	1000mm
Motor	30.0kw	24.3kw	30.3kw
Overall size	900x310x350cm	880x250x350cm	980x240x310cm
Weight	4700kg	4000kg	4800kg
