Products > Plywood Machinery > veneer clipper / veneer stacker > BXQ(J)1827/5B Veneer Peeling and Clipping Combined Machine

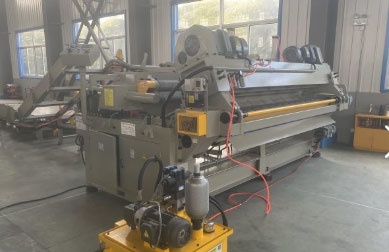

Product name : BXQ(J)1827/5B Veneer Peeling and Clipping Combined Machine

Product No. : 2024116165522

[Next Product]→

Online Inquiry Email Us

Details:

Using: CNC Control , servo motor Mitsubishi Control system - Pneumatic press knife Knife gap automatic adjustment Knife angle automatic adjustment High speed & precision. Wood Veneer Peeling Machine for Plywood Making is the main machine for veneer production.It can peel log from diameter 500mm to 40mm,and improves log utilization.

With peeling and clipping combinee function. It is used to peel eucalyptus, poplar, fast growing wood or log core after peeling from spindle lathe and clip veneer width more than 500mm. The log must be removed skin by debarker before peeling.

Main technical parameters

MODEL	BXQ (J) 1827/5B	BXQ (J) 1820/5B	BXQ (J)1813/5B	BXQ (J)1827/3B	BXQ(J)1820/3B	BXQ (J)1813/3B	BXQ(J)1827/3F	BXQ (J)1820/3F	BXQ(J)1813/3F
Max.rotary cutting length	2600mm	2000mm	1350mm	2600mm	2000mm	1350mm	2600mm	2000mm	1350mm
Max. rotary cutting diameter	φ480mm	φ480mm	φ480mm	φ360mm	φ360mm	φ360mm	φ300mm	φ300mm	φ300mm
The final diameter	φ40mm	φ40mm	φ40mm	φ28mm	φ28mm	φ28mm	φ28mm	φ28mm	φ28mm
Veneer thickness	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm
Peeling speed	50m/min	50m/min	50m/min	50m/min	50m/min	50m/min	50m/min	50m/min	50m/min
Double roller transmission motor power	2×7.5=15kW	2×7.5=15kW	2×5.5=11kW	2×7.5=15kW	2×7.5= 15kW	2×5.5=11kW	2×7.5=15kW	2×7.5=15kW	2×5.5=11kW
Single roller transmission motor power	2×7.5= 15kW	2×5.5=11kW	2×5.5=11kW	2×7.5=15kW	2×5.5=11kW	2×5.5=11kW	2×7.5=15kW	2×5.5=11kW	2x5.5=11kW
Feeding servo motor power	11kW	7.5kW	7.5kW	11kW	7.5kW	7.5kW	11kW	7.5kW	7.5kW
Cliper motor power	2.2kW	2.2kW	2.2kW	2.2kW	2.2kW	2.2kW	2.2kW	2.2kW	2.2kW
Anvil roller motor power	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW
Hydraulic motor power	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW	1.5kW
Total motor power	46.2kW	38.7kW	34.7kW	46.2kW	38.7kW	34.7kW	46.2kW	38.7kW	34.7kW
Overall sizes	5100×2275×1940mm	4500×2275×1940mm	3850×2275×1940mm	5100×2165×1940mm	4500×2165×1940mm	3850×2165×1940mm	5100×2085×1940mm	4500×2085×1940mm	3850×2085×1940mm
Machine weight	11200kg	10400kg	9700kg	11000kg	10200kg	9500kg	10800kg	10000kg	9300kg

1.CNC system to control the main parts work,with good processing precision

2.Servo motor control the tool carriage ahead and back.(guaranted the veneer evenness and minimized) Brand: CTB

3.The knife assembling system is by hydraulic,with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.

4.The transmission is gear box driving screw,the material of gear:high quality alloy.

5.The main structure is welded by thick steel plate and do special surface dealing.

6.With ball screw and linear guide,with high positioning accuracy and high transmission efficiency

7.The material of roller with 45# steel,the surface with chroming,it improve the hardness and wear-resistant,the roller with long using life.
