  Details:

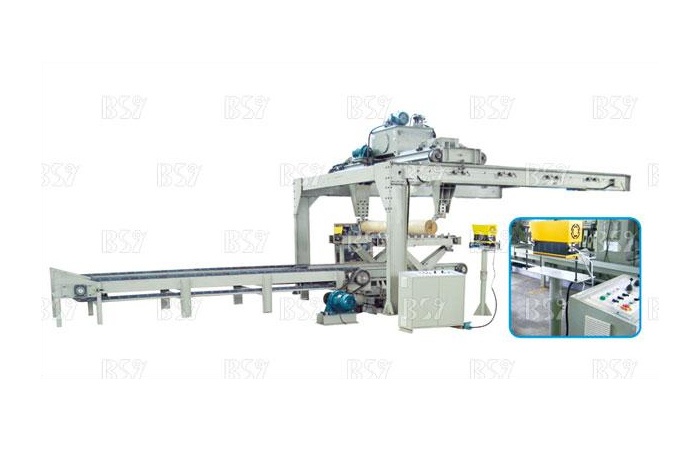

  Optical light log centering charger


Feature:

1. This machine is an auxiliary machines of veneer peeling machinery.

2. It convey the big log to veneer peeling machinery.

3. The principle is to find log center by two light.

4. Be sure the same center with the center of veneer peeling machines.

5. Save worker, improve efficiency. Increase usefulness rate of wood



Parameter

MODEL

BD1513/13

BD1513/26

BD1515/26

Max.Centering diameter

1300mm

1300mm

1500mm

Min.Centering diameter

350mm

350mm

350mm

Max.Log length

1450mm

2700mm

2700mm

Min.Log length

1000mm

1900mm

1900mm

Log conveying

10.5m/min

10.5m/min

10.5m/min

Total motor power

21.5kw

23.5kw

23.5kw

Overall size

1070×560×360cm

1070×680×360cm

1070×680×360cm

Weight(kg)

10000kg

15000kg

16000kg
