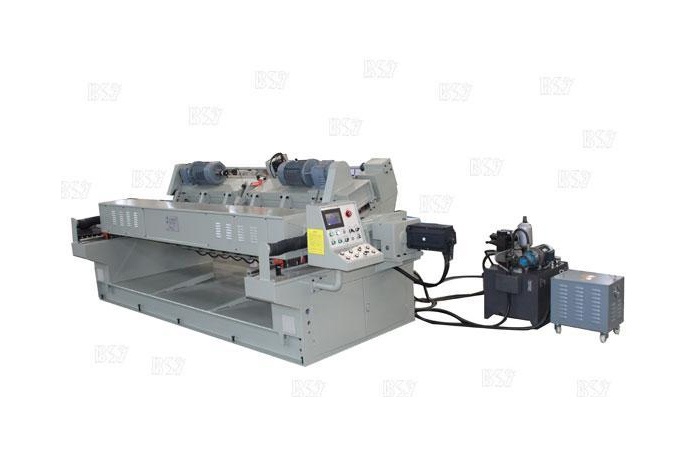

Product name : CNC spindless veneer peeling machine
Product No. : 20181120112451
←[Previous Product]
Online Inquiry         Email Us

  Details:
Range of application:
CNC spindless veneer peeling machinery peel log to veneer. Veneer will be  made plywood.
It is the important machine to make wood based panels.
Of couse, It is also for making funiture, floor and others.
Feature:
1. This machine is heavy duty and advanced.
2. Veneer thickness is auto adjustment by CNC control system.
3. Peeling speed controlled by CNC system.
4. The guide rail is Linear guideway with ball screw.
5. Rapidly change knife, knife put into box and press by hydraulic system.
6. Transmission system is gear drive.
Parameter:

Model

SL2600/5E

SL135/5E

SL2600/5B

SL1350/5B

Cutting log length

2600m

1350mm

2600mm

1350mm

Max. cutting log diameter

480mm

480mm

480mm

480mm

Final log diameter

40mm

40mm

40mm

40mm

Veneer thickness

0.5-3.0mm

0.5-3.0mm

0.5-3.0mm

0.5-3.0mm

Peeling speed

30-80m/min

30-80m/min

30-80m/min

30-80m/min

Motor

60kw

42kw

58kw

40kw

Overall size

460x220x190cm

340x220x190cm

480x220x190cm

350x220x190cm

Weight

13500kg

12000kg

11500kg

11000kg
