Products > Plywood Machinery > Veneer peeling machinery / Log charger > SLK2600/5F CNC Spindless Rotary Peeling Lathe

Product name : SLK2600/5F CNC Spindless Rotary Peeling Lathe

Product No. : 2024116113720

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Using:With Press Bar, CNC Control , servo motor Mitsubishi Control system - Pneumatic press knife Knife gap automatic adjustment Knife angle automatic adjustment High speed & precision. Wood Veneer Peeling Machine for Plywood Making is the main machine for veneer production.It can peel log from diameter 500mm to 40mm,and improves log utilization.

Main technical parameters

MODEL	SLK2600/5F	SLK2000/5F	SLK1350/5F
Max. rotary cutting length	2600mm	2000mm	1350mm
Max. rotary cutting diameter	φ480mm	φ480mm	φ480mm
The Final diameler	φ60mm	φ60mm	φ60mm
Venccr thickness	0.8~3.0mm	0.8~3.0mm	0.8~3.0mm
Peeling speed	30-80m/min	30~80m/min	30-80m/min
Double roller transmission motor power	2×11=22kW	2×11=22kW	2×7.5=15kW
Single roller transmission motor power	2×11=22kW	2×7.5=15kW	2×7.5=15kW
Double roller feeding motor power	11kW	7kW	7kW
Single roller feeding motor power	3.5 kW	3.5 kW	3.5kW
Blade gap Servo motor power	1.5kW	1.5kW	1.5kW
CNC rear angle motor power	1.5kW	1.5kW	1.5kW
Hydraulic motor power	1.5kW	1.5kW	1.5kW
Total motor power	63kW	52kW	45kW
Overall sizes	4600×2150×1900mm	4000×2200×1900mm	3350×2200×1900mm
Weight	13500kg	12500kg	11700kg

Features:

CNC system to control the main parts work,with good processing precision

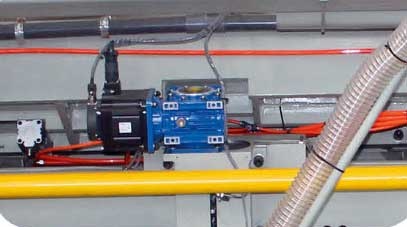

Servo motor control the tool carriage ahead and back.(guaranteed the veneer evenness and minimized) Brand: Mitsubishi

3.The knife assembling system is by hydraulic,with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.

4.The transmission is gear box driving screw,the material of gear:high quality alloy.

5.The main structure is welded by thick steel plate and do special surface dealing.

6. With servo motor control knife-gap, the knife-gap automatic adjustment,with high precision(Brand: Mitsubishi)

7.With ball screw and linear guide,with high positioning accuracy and high transmission efficiency

8.The material of roller with 45# steel,the surface with chroming,it improve the hardness and wear-resistant,the roller with long using life.
